Whipstock Services |
|
 |
|

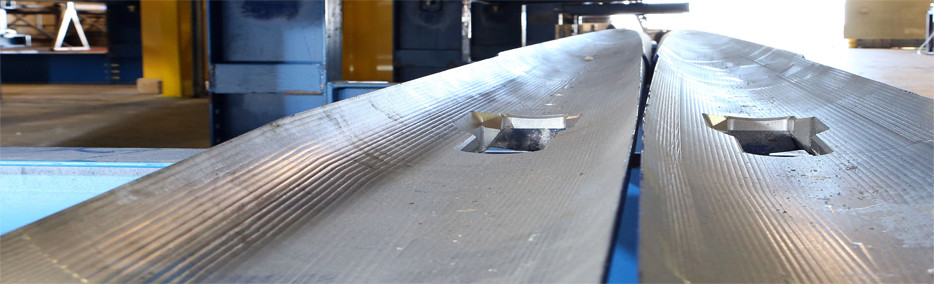

The Premium Gauge Whipstock System is a single-trip
sidetracking system for a cased wellbore. Our Premium Gauge Whipstock
System is sure to satisfy our customers who need the best sidetracking

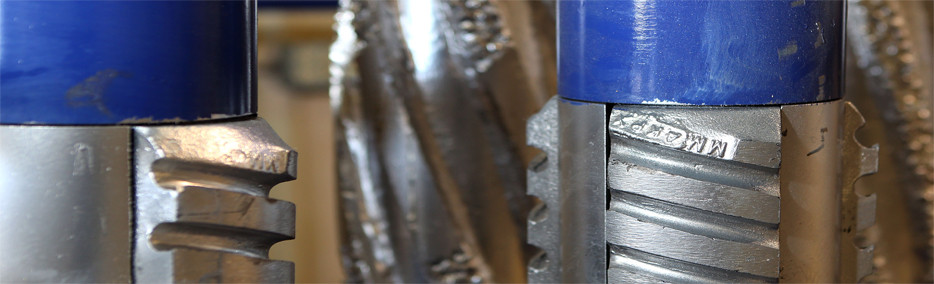

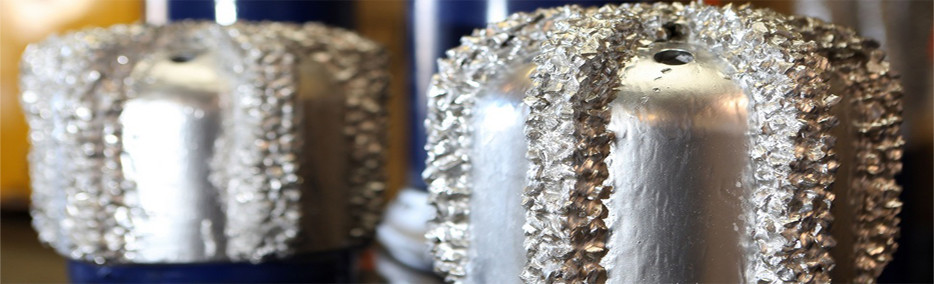

service. The running assembly consists of a Premium Triple Cut Mill and a
Premium Gauge Whipstock, which contains a mechanical anchor.
The objective of the Premium Gauge Whipstock System is to
deliver a single trip casing exit resulting in a Premium Gauge Window
achieved with a minimum milling time and providing a full gauge rat hole
for directional drilling assemblies and tight tolerance casing
programs.
For more information contact
FishingServices@premiumofs.com |
WHIPSTOCK SIZE |
SLIDE LENGTH |
SLIDE ANGLE |
SLIDE OD |
SHEAR VALUE |
MILL O.D. |
13 3/8" |
22.5' |
2.3 |
11.5" |
75,000 |
12 1/4" |
11 3/4" |
19.5' |
2.3 |
10" |
75,000 |
10 5/8" |
10 3/4" |
17.5' |
2.3 |
9" |
55,000 |
9 1/2", 9 7/8" |
9 5/8" |
15' |
2.3 |
8" |
55,000 |
8 1/2", 8 3/4" |
7 5/8" |
11' |
2.3 |
6" |
40,000 |
6 1/2", 6 3/4" |
7" |
10' |
2.3 |
5 1/2" |
35,000 |
6", 6 1/8" |
5 1/2" |
8' |
2.3 |
4 1/4" |
25,000 |
4 3/4", 4 7/8" |
|
|
|
